The Role of CNC Machining in Biocompatible Materials

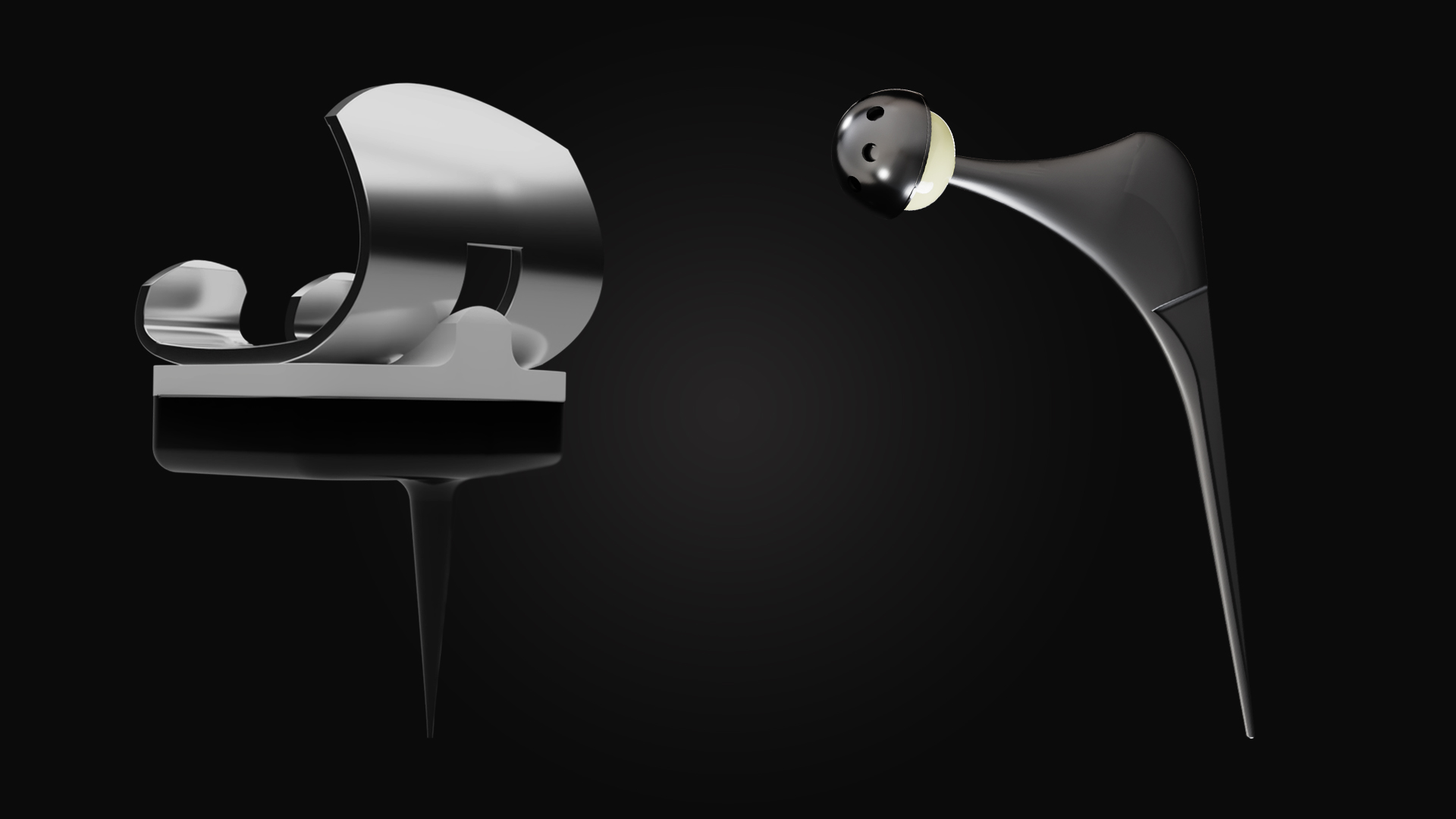

In the precision-driven realm of medical manufacturing, CNC (Computer Numerical Control) machining is a cornerstone, known for its unmatched accuracy and efficiency. Biocompatible materials, such as titanium, stainless steel, and polymers are extensively used in creating medical devices like implants and surgical tools. These materials require not only safety and reliability but also meticulous engineering to meet stringent medical standards. The machining process is a complex blend of material science and mechanical engineering, where advanced 5-axis CNC technology is crucial for shaping these materials into the intricate designs needed for medical applications.
1 1
The role of CNC machining in healthcare is pivotal. With its ability to achieve complex geometries and ultra-fine tolerances, CNC technology ensures the production of components that are not only functional but also durable. This introduction lays the groundwork for exploring how CNC machining is transforming healthcare, by examining the unique challenges of different biocompatible materials, the innovative solutions that overcome these challenges, and the promising future of medical machining driven by technological progress.

Challenges of Machining Biocompatible Materials

Biocompatible materials are pivotal in the fabrication of medical devices due to their compatibility with biological systems. However, their unique properties also present significant machining challenges that require specialized approaches and advanced technology. Understanding these challenges is crucial for optimizing the manufacturing process and ensuring the reliability and safety of the final medical products.

Material Sensitivity and Integrity

One of the primary concerns in machining biocompatible materials is maintaining the integrity of the material throughout the process. Materials like PEEK (Polyether ether ketone) and titanium are favored for their strength and stability, but they also have characteristics that can complicate the machining process. For instance, PEEK is prone to melting at high machining temperatures, requiring careful management of cutting speeds and feeds. Titanium, while durable, can adhere to cutting tools, leading to tool wear and potential material contamination.
Achieving Ultra-fine Tolerances
Medical devices often require extremely tight tolerances due to their need to fit precisely within the human body. Achieving these tolerances can be particularly challenging with biocompatible materials, which may deform or exhibit unexpected behaviors under machining stress. The precision of CNC machining, particularly with 5-axis machines, is crucial in meeting these exacting standards, as it allows for more precise control over the toolpath and the orientation of the workpiece.
Surface Finish and Sterilization
The surface finish of a machined biocompatible material must be impeccable, as any irregularities can harbor bacteria or cause unwanted reactions in the body. Achieving a smooth finish requires not only precise machining but also an understanding of how different materials respond to various finishing techniques. Moreover, the surface must be compatible with sterilization methods, which often involve high temperatures or harsh chemicals that can affect the material’s properties.
Complexity and Customisation
Many medical devices are customized or have complex geometries tailored to specific medical tasks. This complexity adds another layer of difficulty to the machining process. CNC machines, especially those equipped with advanced software and capable of high degrees of freedom, are vital for creating these intricate designs. The ability to execute complex cuts and fine details without compromising the material’s properties or the device’s functionality is a testament to the capabilities of modern CNC technology.

Material Diversity

Wearable devices often require the use of diverse materials, from metals for structural components to plastics and composites for housings and flexible parts. CNC machines handle this variety with ease, maintaining high precision across different materials without compromising production speed or quality.

The requirements of these manufacturing processes position CNC technology as a leader in wearable tech production. At Ethereal Machines, our 5-axis CNC machines are designed to meet these challenges head-on, providing the precision, flexibility, and efficiency necessary to innovate and excel in this dynamic industry.

Technological Solutions in CNC Machining of Biocompatible Materials

To overcome the stringent challenges associated with machining biocompatible materials, advanced CNC technologies and strategies are implemented. These innovations not only resolve the common issues but also push the boundaries of what can be achieved in medical manufacturing.

Advanced Tooling and Material-Specific Strategies

The selection of appropriate cutting tools and machining strategies is critical when working with sensitive biocompatible materials. Manufacturers often use specialized tooling made from materials like polycrystalline diamond (PCD) or tungsten carbide, which can withstand the stresses of machining hard, abrasive materials like ceramics or tough polymers. Additionally, tool paths and cutting parameters are meticulously optimized to minimize heat generation and prevent material degradation or deformation.

Precision with 5-Axis Machining

5-axis CNC machines provide distinct advantages in machining biocompatible materials, primarily through enhanced precision and flexibility. Unlike traditional 3-axis systems, 5-axis machines can manipulate the workpiece in five different axes simultaneously, allowing for complex geometries and undercuts to be machined in a single setup. This capability is crucial for producing multi-faceted components of medical devices, which often feature complex shapes and require high precision. Moreover, the ability to approach the workpiece from virtually any angle reduces the time and the number of setups required, enhancing the overall efficiency and accuracy of the production process.

Automation and Process Optimisation

Automation in CNC machining not only increases productivity but also enhances the quality of the machined parts. Automated systems can consistently reproduce precise movements and patterns, reducing human error and increasing the reliability of the machining process. Process optimization through advanced software also plays a vital role; it allows for the simulation of machining processes before actual production, identifying potential issues and enabling adjustments without risking material waste.

Surface Treatment Technologies

Post-machining surface treatments are essential for achieving the required surface quality and ensuring the biocompatibility of the machined parts. Technologies such as chemical passivation, electro-polishing, and laser polishing are employed to enhance surface finish, remove contaminants, and increase corrosion resistance. These treatments are carefully chosen based on the material and the specific requirements of the medical device being produced.

Case Studies in CNC Machining of Biocompatible Materials

The following case studies exemplify how advanced CNC machining technologies have been crucial in overcoming challenges and achieving exceptional results in the production of medical devices. These examples underscore the precision, adaptability, and efficiency of CNC techniques in handling complex and critical medical applications.

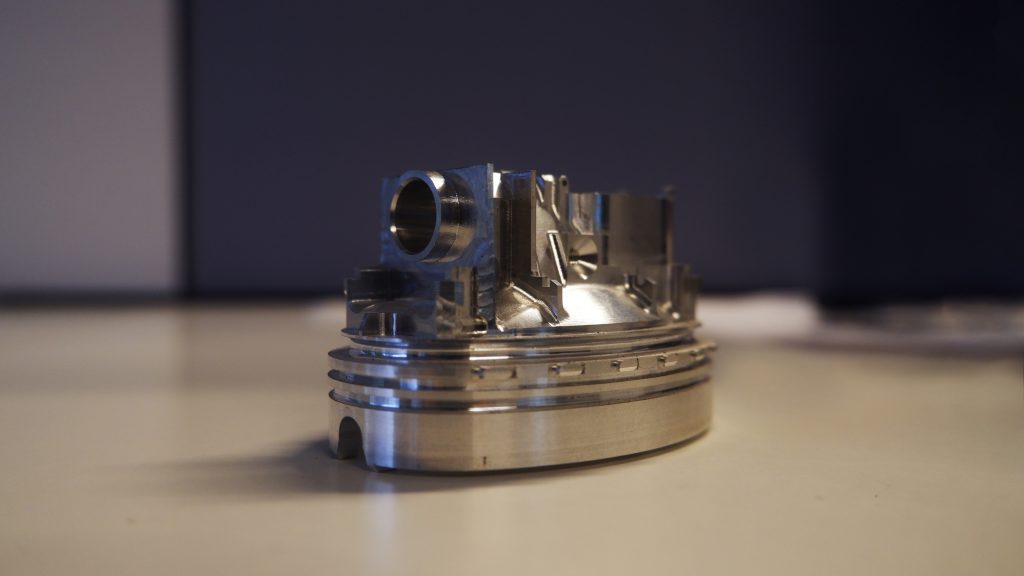

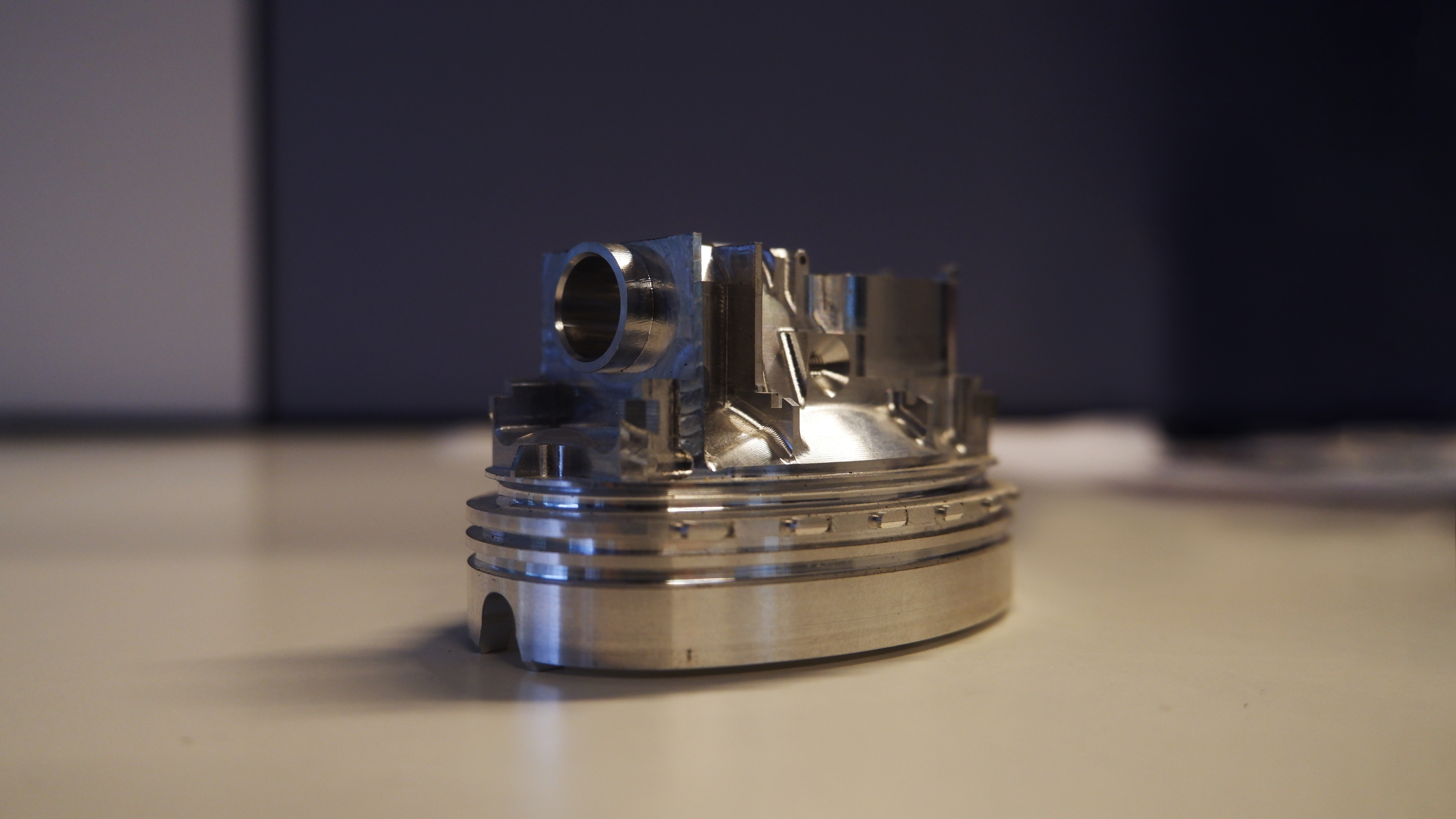

Ultrasound Scanning Probe

Ultrasound scanning probes are crucial diagnostic tools that require high precision and reliability. The probes must have excellent acoustic properties and be safe for repeated contact with human skin.

Solution: CNC machining was used to fabricate the complex geometrical components of the probe, particularly the casing which needs to be durable yet lightweight. A high-grade aluminum known for its acoustic impedance similar to human tissue was selected. The machining process involved 5-axis CNC machines to achieve the intricate designs necessary for housing sensitive electronic components without compromising the probe’s ergonomic requirements.

Outcome: The CNC-machined ultrasound probe provided superior durability and user comfort. The precision in manufacturing ensured that the acoustic properties of the probe were optimal for diagnostic purposes, leading to clearer images and more accurate diagnoses. The machining process also allowed for rapid prototyping, which sped up the innovation cycle and brought the product to market more quickly.

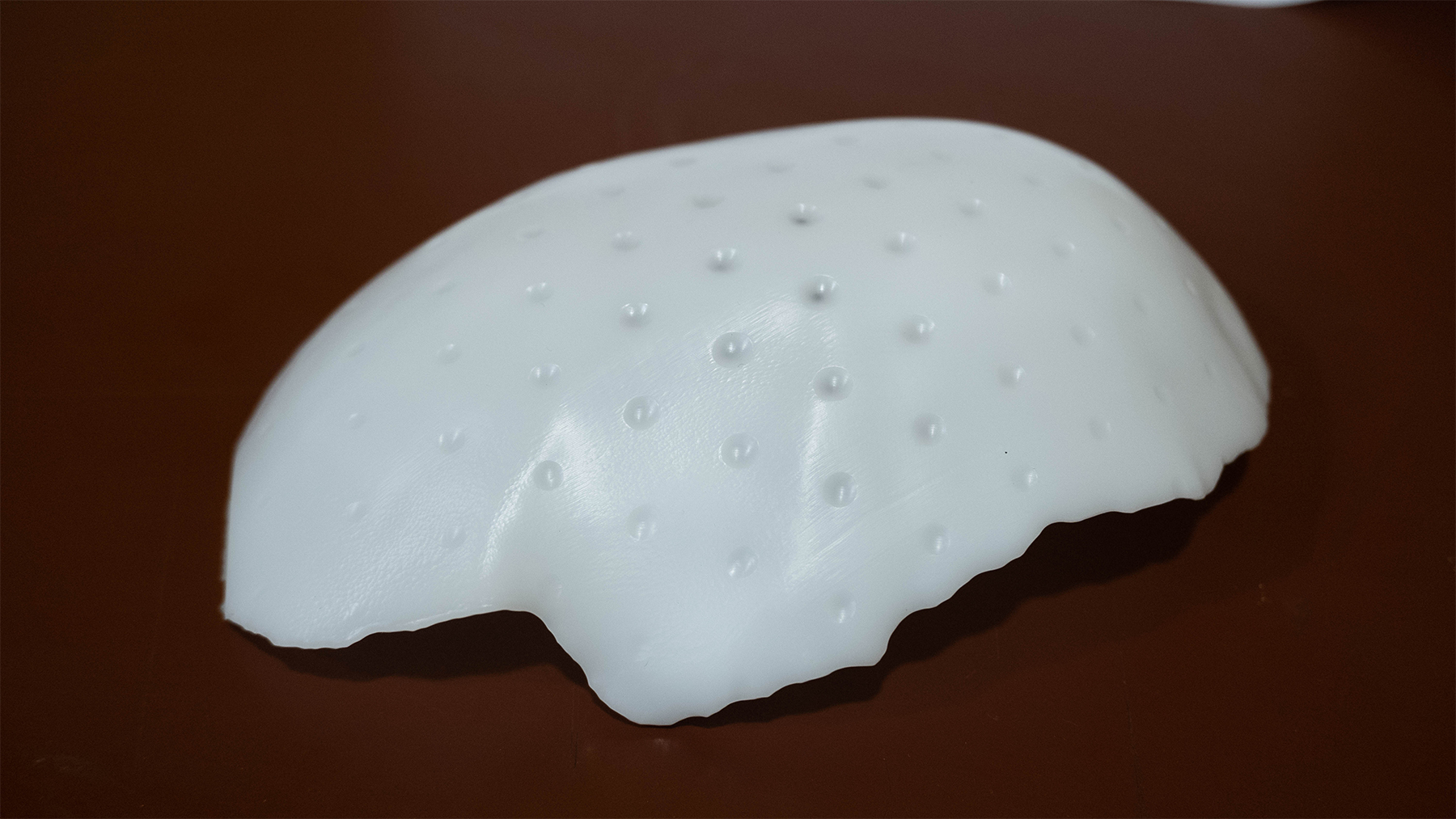

Customised Skull Implant

Skull implants must be customized to the patient’s specific anatomical requirements, demanding materials that are biocompatible, strong, and capable of integrating with human bone.

Solution: Titanium, favored for its strength, lightweight, and biocompatibility, was used for the skull implant. CNC machining played a vital role in customizing the implant to the exact dimensions of the patient’s skull defect. The process utilized detailed 3D scans of the patient’s skull as input for the CNC programming, ensuring the implant would be an exact fit. The 5-axis CNC machining allowed for the creation of complex shapes and fine details that are critical for the aesthetics and functionality of the implant.

Outcome: The customized skull implant was a perfect fit, significantly reducing surgery time and improving the patient’s recovery process. The precision of the CNC machining ensured that the implant was not only structurally sound but also aesthetically pleasing, closely matching the contour of the patient’s skull. This led to improved patient satisfaction and outcomes.

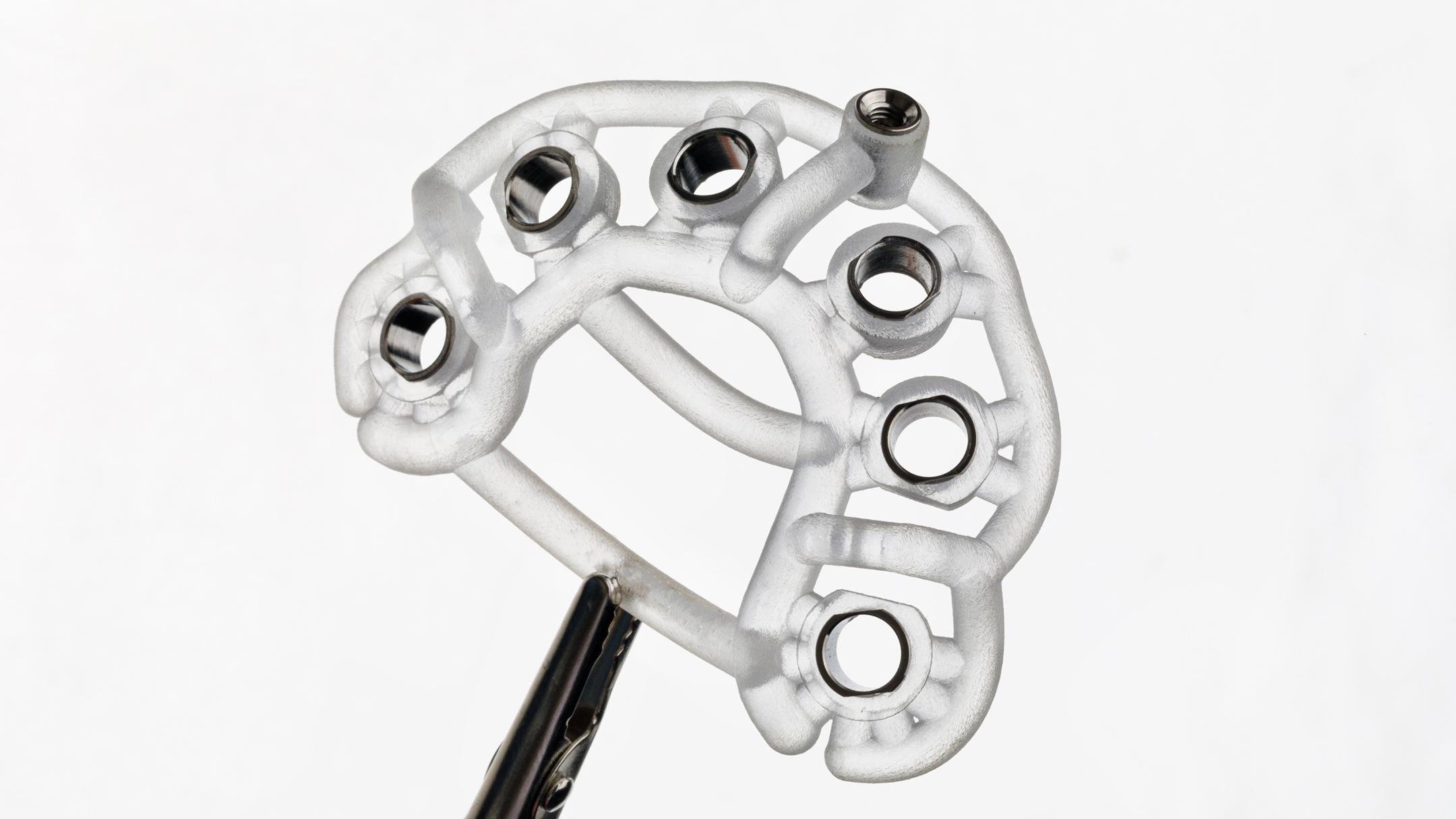

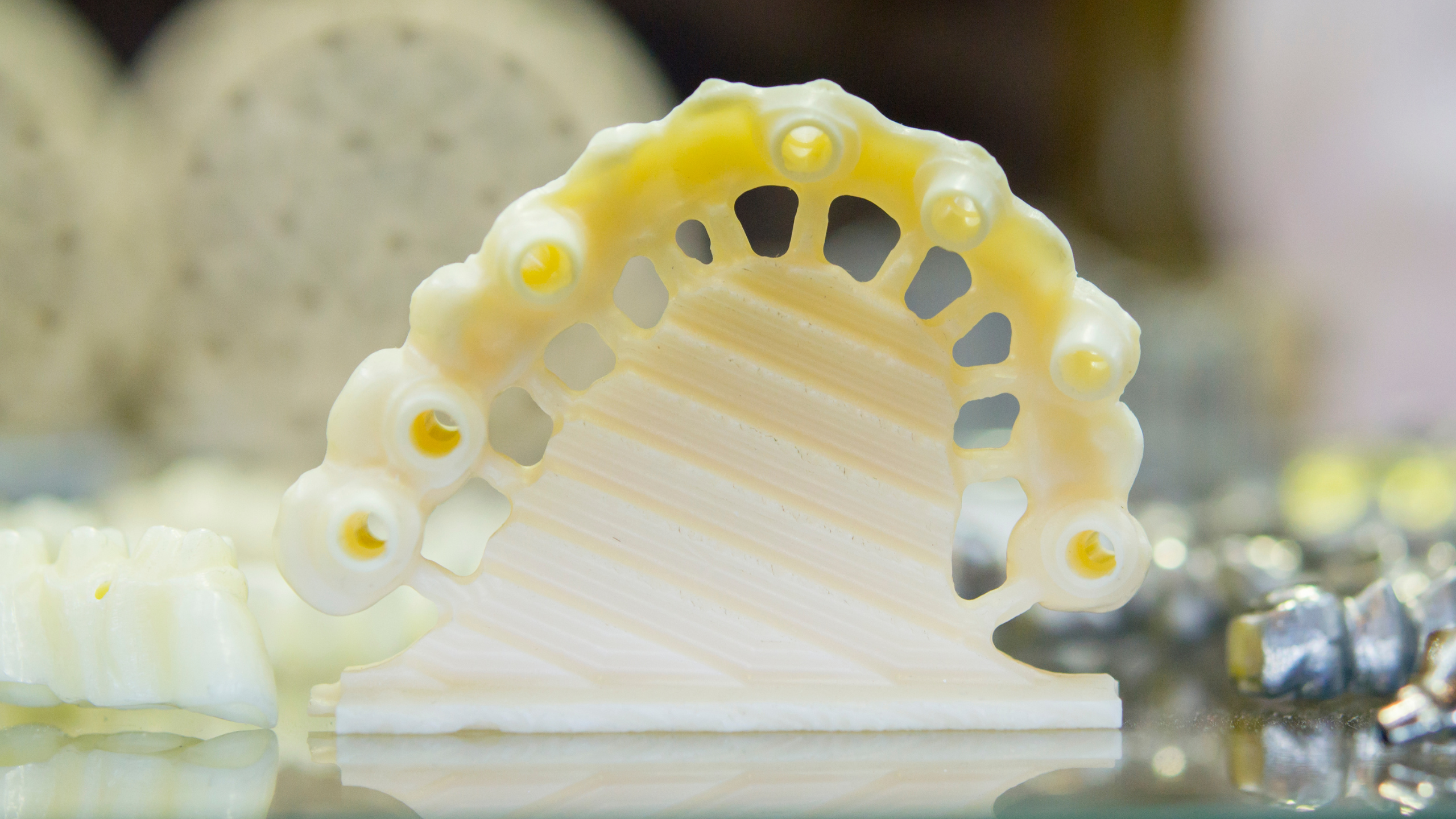

Dental Implants

Custom dental implants require precision and customization to fit individual patients’ anatomical needs. PEEK, known for its durability and biocompatibility, poses specific challenges due to its sensitivity to machining temperatures.

Solution: The production utilized a CNC machine equipped with temperature control and optimized tool paths to mitigate heat generation. The cutting parameters were carefully adjusted to prevent the PEEK from reaching temperatures that could cause melting or deformation.

Outcome: The implants were produced with high precision, maintaining the integrity of the PEEK material. The customized fit and excellent material properties resulted in highly successful clinical outcomes, with patients experiencing improved comfort and implant longevity.

Conclusion

The exploration of CNC machining in the realm of biocompatible materials showcases a dynamic convergence of precision and necessity, where innovative technological solutions rise to meet the exacting standards of medical manufacturing. CNC machining stands as a pillar of reliability, producing devices with complex geometries and impeccable surface finishes that ensure effectiveness, safety, and durability in medical applications. As the spectrum of biocompatible materials expands, CNC technology continues to evolve, poised to address the future challenges of medical device production with even greater precision and adaptability.

This progression promises to revolutionize patient care by enabling the production of more sophisticated and miniaturized medical devices. It is imperative for manufacturers, engineers, and technologists to persist in innovation and collaboration, ensuring that advancements in CNC technology meet the complex demands of modern medicine and improve patient outcomes.
