The Stiffness Paradox: Re-Engineering the 5-Axis Rotary Standard
For decades, the contract manufacturing industry has navigated a binary choice when producing complex parts: utilize geared 5-axis machines for heavy material removal (sacrificing precision) or use Direct Drive systems for high dynamic accuracy (sacrificing rigidity). This article outlines the engineering rationale behind Ethereal Machines’ proprietary Closed-Loop architecture. Validated by CMTI ISO 230-2 certification, this deep-tech innovation allows our manufacturing facilities to deliver sub-arc-second precision on custom components without sacrificing the mechanical rigidity required for heavy industrial machining.
The Engineering Gap in Traditional Job Shops
When product OEMs (Original Equipment Manufacturers) in the aerospace, electronics, and medical sectors outsource complex 5-axis components, the quality of the part is entirely dependent on the architecture of the supplier’s machines. The industry standard has long been limited by a necessary compromise:

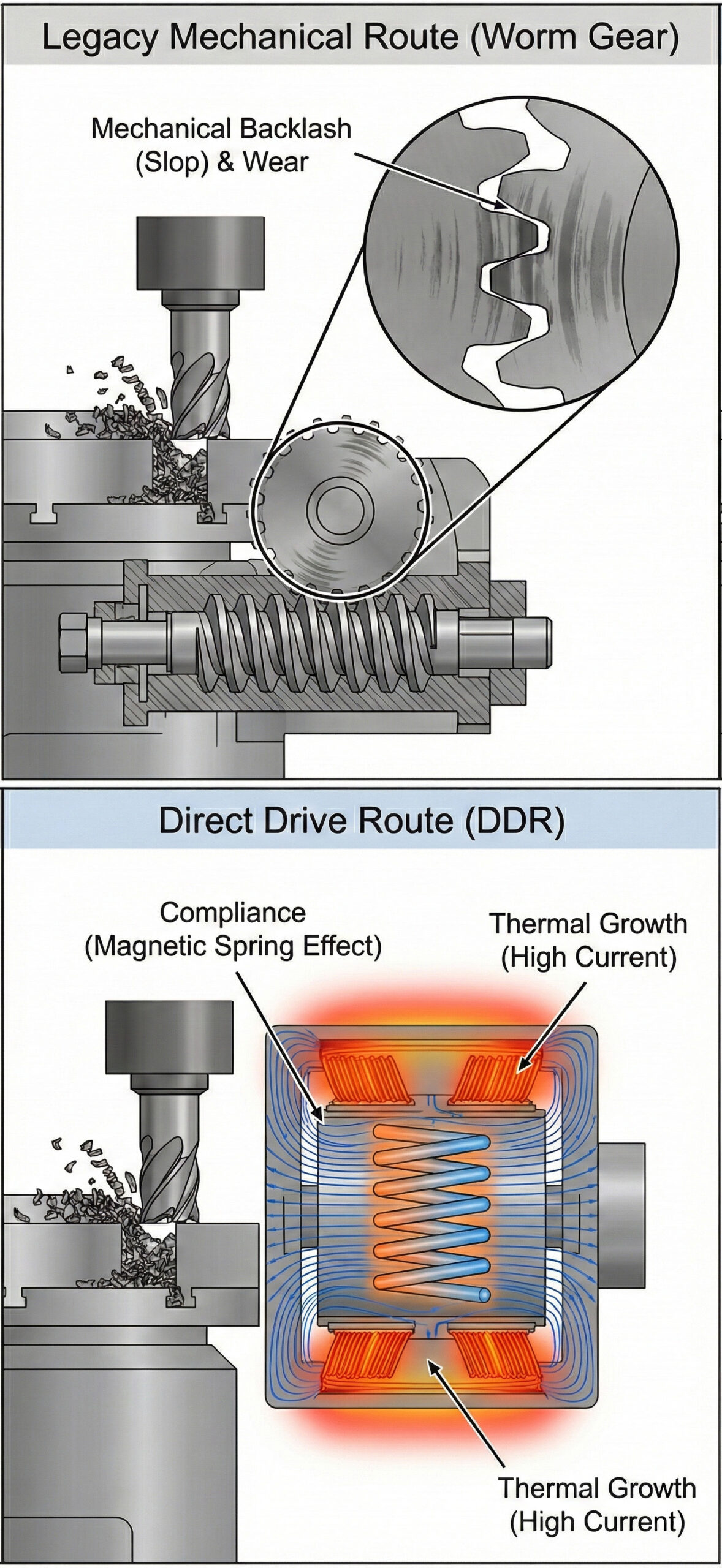

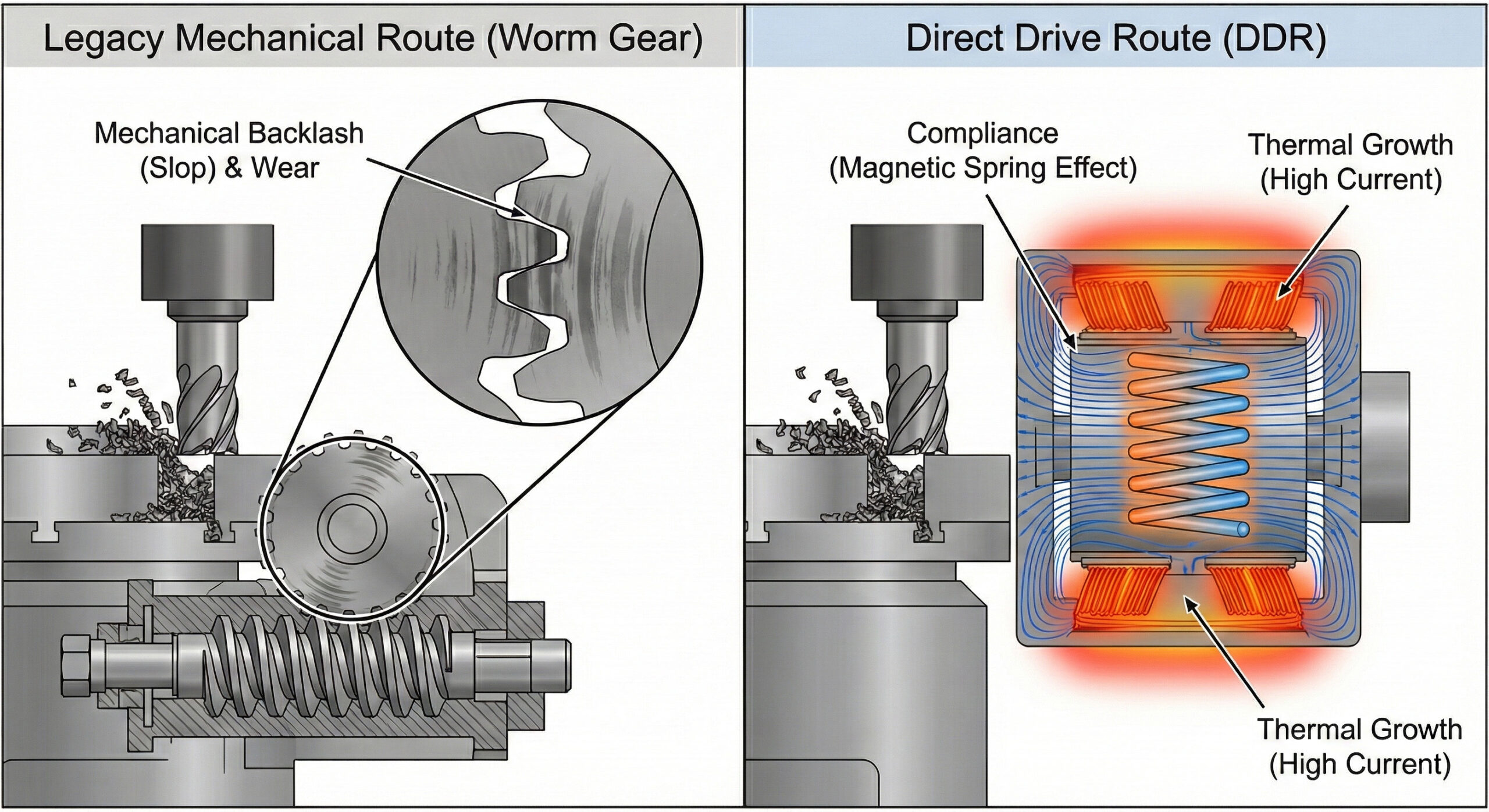

- The Mechanical Route (Worm Gears & Roller Cams):
Legacy manufacturing facilities often rely on these systems for their passive stiffness to absorb the high-frequency vibrations (chatter) generated during heavy roughing of Titanium or Inconel. However, they face inherent limitations. Worm gears suffer from sliding friction and wear. While premium Roller Cams offer excellent stiffness, they inevitably develop mechanical backlash (slop) over their service life, leading to dimensional inaccuracies. - The Direct Drive Route (DDR):
Direct Drive motors eliminate backlash entirely, offering the highest possible dynamic response for fine finishing. However, they introduce a new variable: Compliance. Lacking mechanical reduction, a DDR motor acts as a “magnetic spring.” To hold a position against a heavy, off-center cutting load, it must consume massive current. This introduces thermal growth and micro-vibrations, which can compromise the surface finish on long-cycle parts.
The Challenge:
To manufacture mission-critical components at scale, a facility requires the shock-load capacity of a gear (for Titanium/Inconel removal) with the positional truth of a direct drive (for aerospace-grade finishing).
The Ethereal Solution: Closed-Loop Rigidity
Rather than relying on legacy imported machines, Ethereal Machines engineered the Nimbus Rotary Axis to power our own manufacturing ecosystem. We bypassed standard sliding-friction gears and adopted a proprietary heavy-duty transmission, an architecture known for its superior mechanical efficiency, load distribution, and exceptional shock-load capacity (handling up to 5x the rated torque).
The Technical Nuance:
A generic heavy-duty gearbox typically exhibits “Lost Motion” (transmission error, usually around 1 arc-minute) that precludes it from high-end precision machining. To solve this, Ethereal’s architecture decouples the transmission of torque from the measurement of position.
- Mechanical Load Path: The proprietary gearbox handles the Hertzian contact stress and cutting forces, providing a rigid mechanical link to the machine bed.
- Positional Feedback Loop: True Absolute, High-Resolution Optical Encoders are mounted directly to the table face (the load side).
By closing the servo loop on the absolute optical scale rather than the motor, our CNC controllers detect the non-linear lost motion of the gearbox and apply real-time electronic compensation. The result is a manufacturing platform that holds the cut with mechanical authority but positions with digital precision.
Metrology Verification: The CMTI Report
In deep-tech manufacturing, trust is built on empirical data. The Nimbus 5-axis architecture, which powers our production floors, was validated by the Advanced Machine Tool Testing Facility (AMTTF), a specialized division of the Central Manufacturing Technology Institute (CMTI), for independent performance verification.
While baseline linear positioning is often validated under the umbrella of ISO 230-2 standard, true 5-axis aerospace geometries live and die by their rotary kinematics. Therefore, to provide OEMs with absolute assurance, our rotary axes were specifically tested against the stringent ISO 10791-4 standard. This is the international benchmark explicitly governing the accuracy and repeatability of rotary tables on multi-axis machining centers.
1. Reversal Error (Backlash)

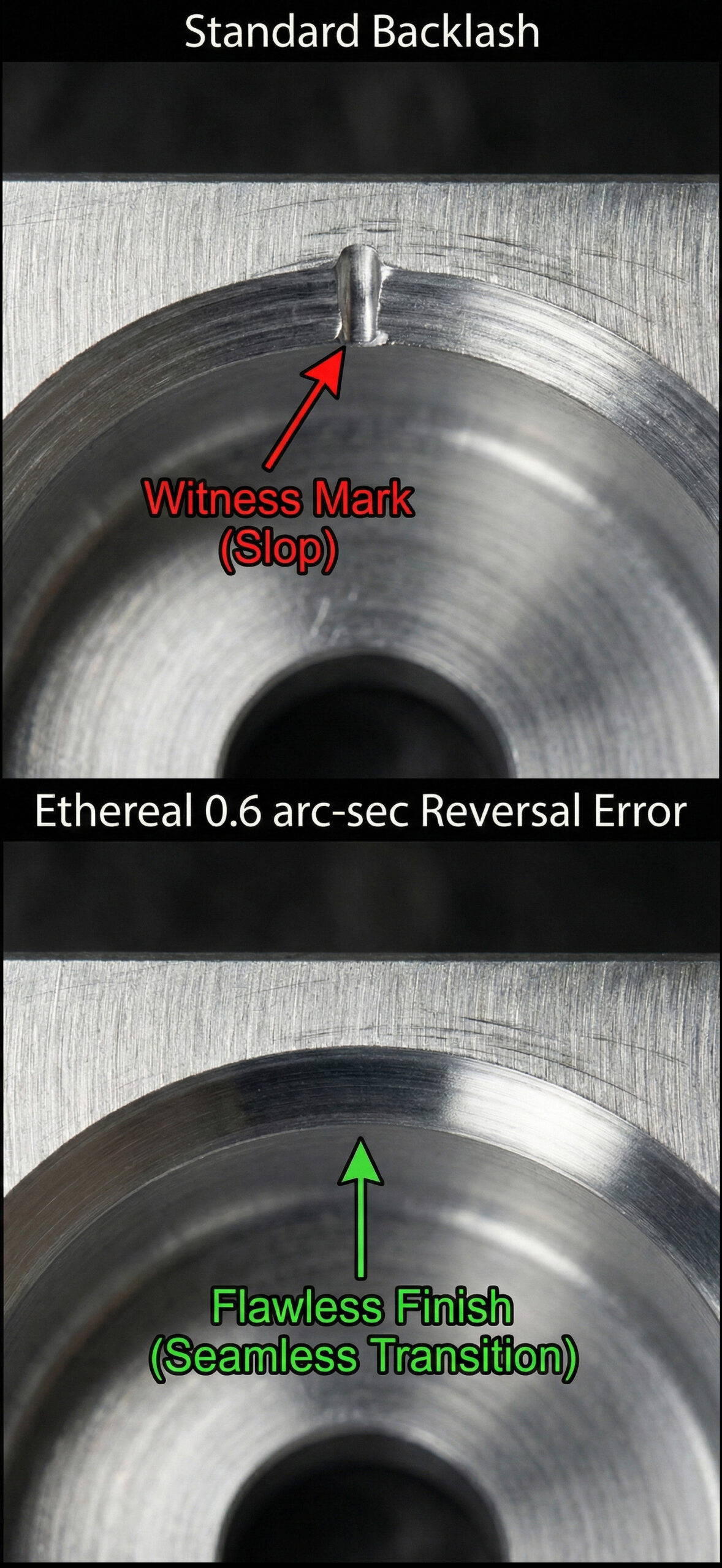

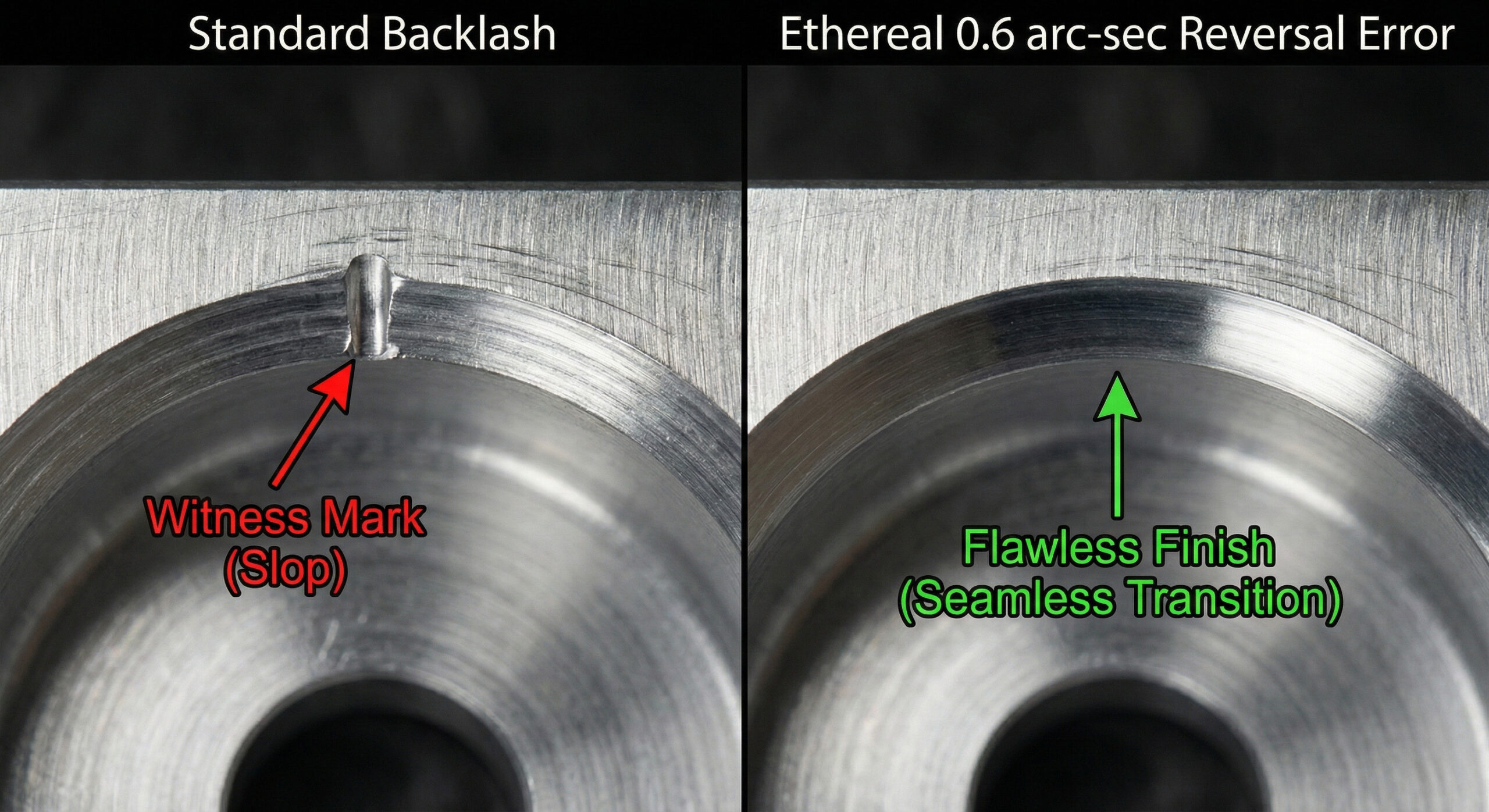

In 5-axis machining, the greatest risk to a component’s surface finish is “lost motion” when an axis changes direction, often leaving visible “witness marks” on the part.
- Industry Norm (Geared): 10–30 arc seconds.
- Ethereal Validated Performance: 0.6 arc seconds.
Impact: A reversal error of 0.6 arc seconds indicates our systems have virtually eliminated mechanical “dead zones.” This ensures seamless quadrant transitions in complex contouring, rivaling the performance of direct-drive motors.

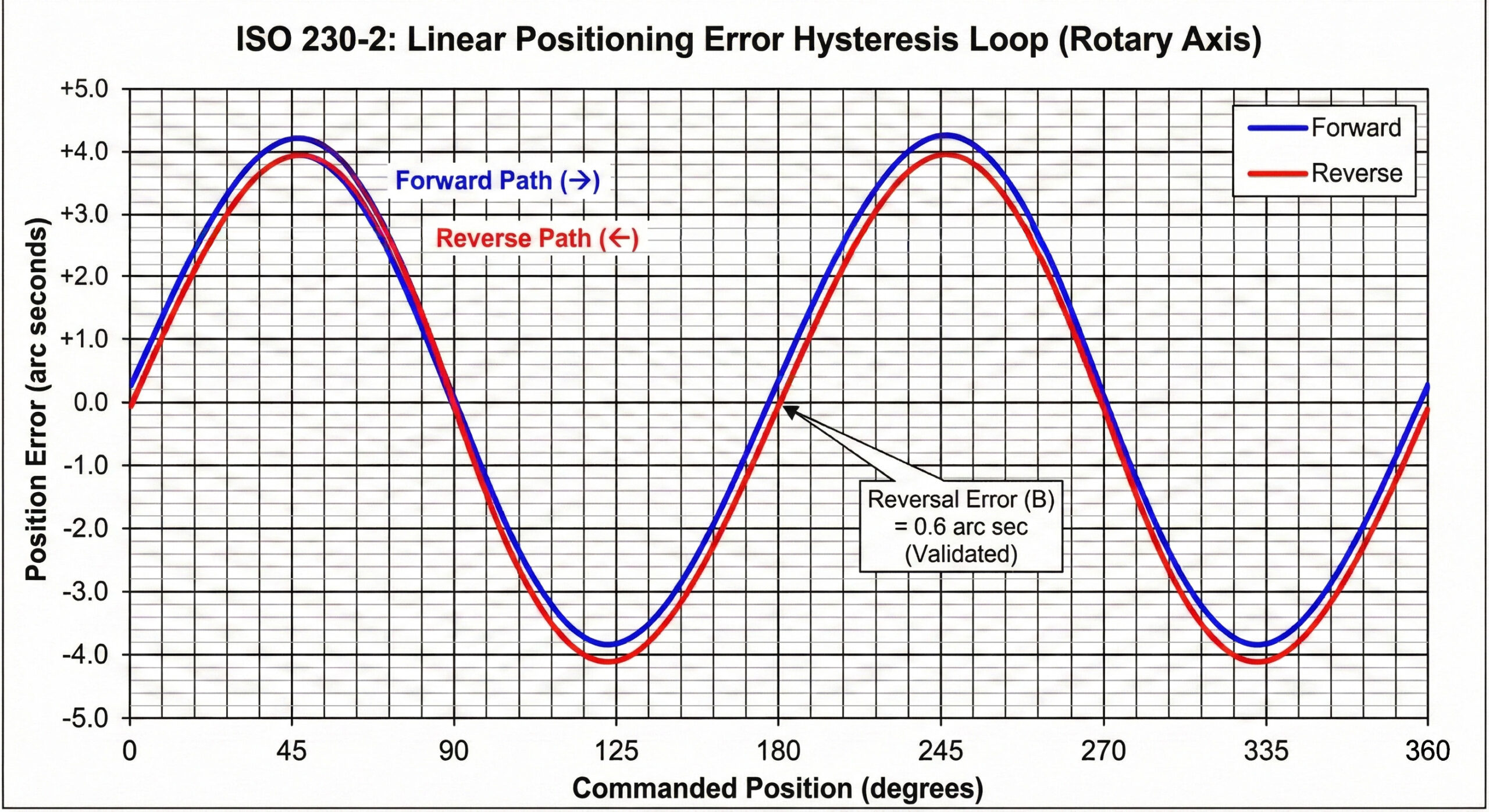

Figure 1: Eliminating the Dead Zone.
The vertical gap between the forward (blue) and reverse (red) lines represents the Reversal Error (B). The minimal separation confirms the elimination of mechanical backlash, validated at 0.6 arc seconds.
2. Bi-Directional Accuracy (A) .

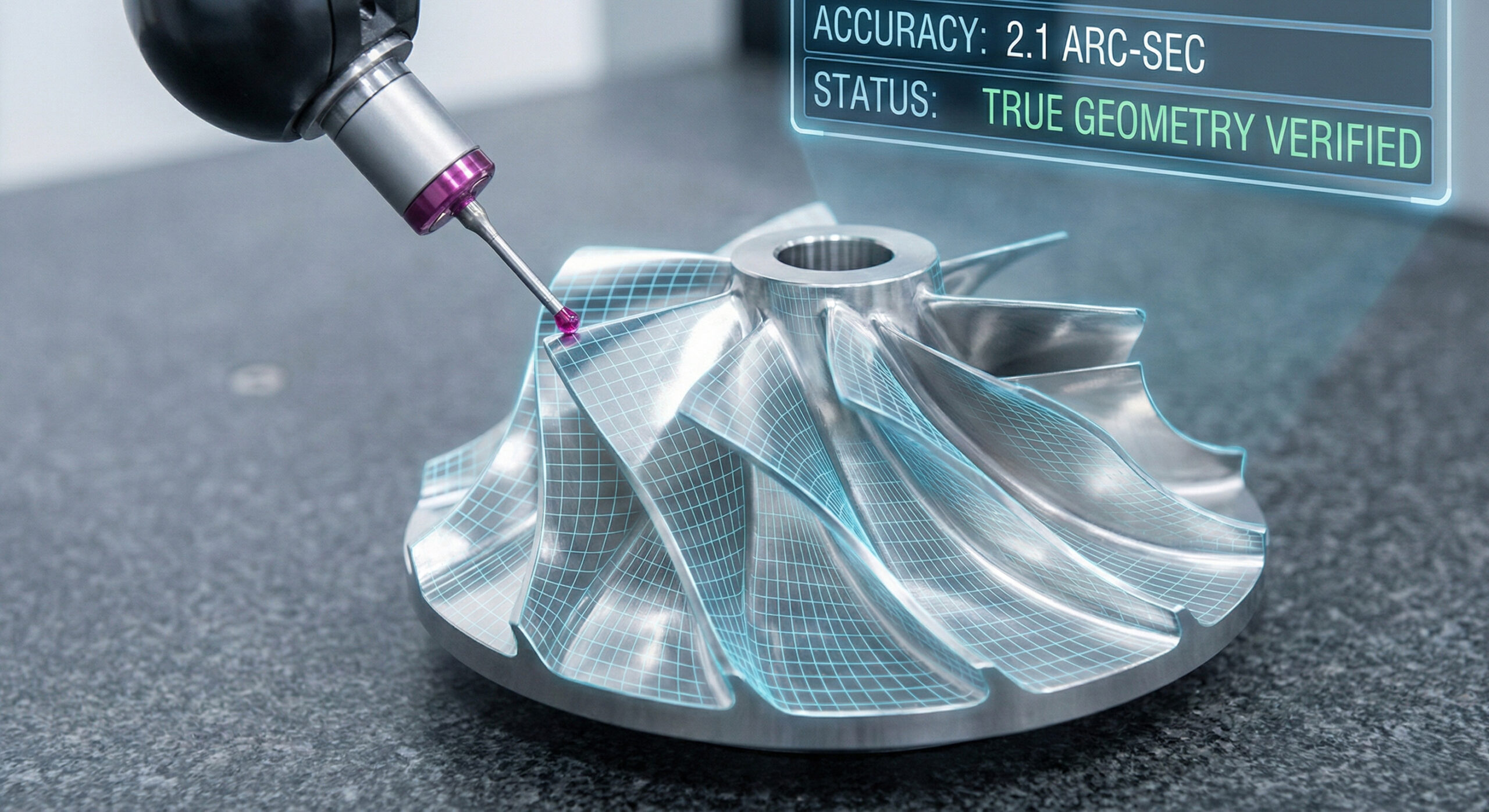

While reversal error dictates the smoothness of directional changes, Bi-Directional Accuracy defines the absolute positional truth of the machine. It measures the maximum deviation between the commanded angular coordinate and the actual physical position achieved by the rotary table, accounting for approaches from both directions. In 5-axis machining, even microscopic angular deviations at the center of rotation are severely magnified at the cutting tip, causing critical features to drift out of tolerance.
Ethereal Validated Performance: 2.1 arc seconds.
Impact: This accuracy value places our manufacturing capabilities in the upper tier of global precision standards, ensuring strict adherence to the tightest aerospace and medical tolerances.

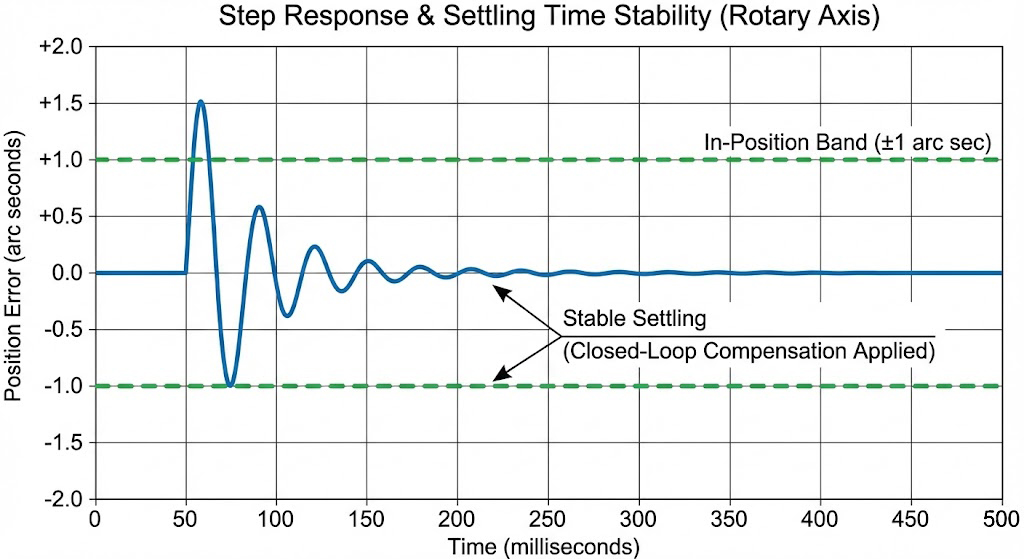

Figure 2: Precision Consistency.
The system achieves positioning accuracy comparable to premium global brands, demonstrating that the closed-loop control effectively compensates for mechanical variance.
Redefining Machining-as-a-Service (MaaS) for OEMs
Why does this metrology data matter to a procurement director or lead engineer sourcing custom components?
Because the quality of your outsourced components is dictated by the DNA of the machines that make them. By achieving 2.1 arc-second accuracy on a mechanically rigid platform, Ethereal Machines offers OEMs a distinct manufacturing advantage:
- Uncompromised Quality: We eliminate the “roughing vs. finishing” machine transition. Our architecture handles heavy material removal and ultra-fine finishing in a single setup, drastically reducing tolerance stacking and handling errors.
- Versatile Capability: From rigid titanium aerospace impellers to intricate, biocompatible medical implants, our deep-tech infrastructure adapts to the most demanding material requirements.
- Supply Chain Sovereignty: By utilizing our own proprietary, world-class technology, we remove the dependencies and bottlenecks associated with legacy import-reliant job shops, providing a secure, scalable manufacturing partner.
Conclusion
Ethereal Machines is not just operating a machine shop; we are executing a new paradigm in digital manufacturing. We offer product OEMs a verified pathway to high-precision component manufacturing, grounded in robust, proprietary engineering and CMTI-certified data.
