The Role of Finite Element Analysis in CNC Machining

The Role of Finite Element Analysis in CNC Machining

Finite Element Analysis in CNC Machining

Predicting and Preventing Thermal Expansion, Deflection, and Chatter on CNC Machined Parts​

In the realm of CNC machining, achieving precision and consistency is of utmost importance. Producing accurately machined parts requires a profound comprehension of the factors that can influence the final product. In this technical article, we will delve into the critical significance of thermal expansion, deflection, and chatter in relation to the accuracy and consistency of machined parts. By understanding and effectively addressing these factors, CNC machining processes can yield high-quality components that adhere to the stringent demands of the aerospace, medical, and defense industries.

1. Thermal Expansion

Thermal expansion and contraction pertain to the dimensional changes experienced by materials due to temperature fluctuations. When subjected to heat, a material expands, while cooling causes it to contract. These alterations can considerably impact the accuracy of machined parts, particularly when dealing with materials that possess high coefficients of thermal expansion, such as aluminum or steel.

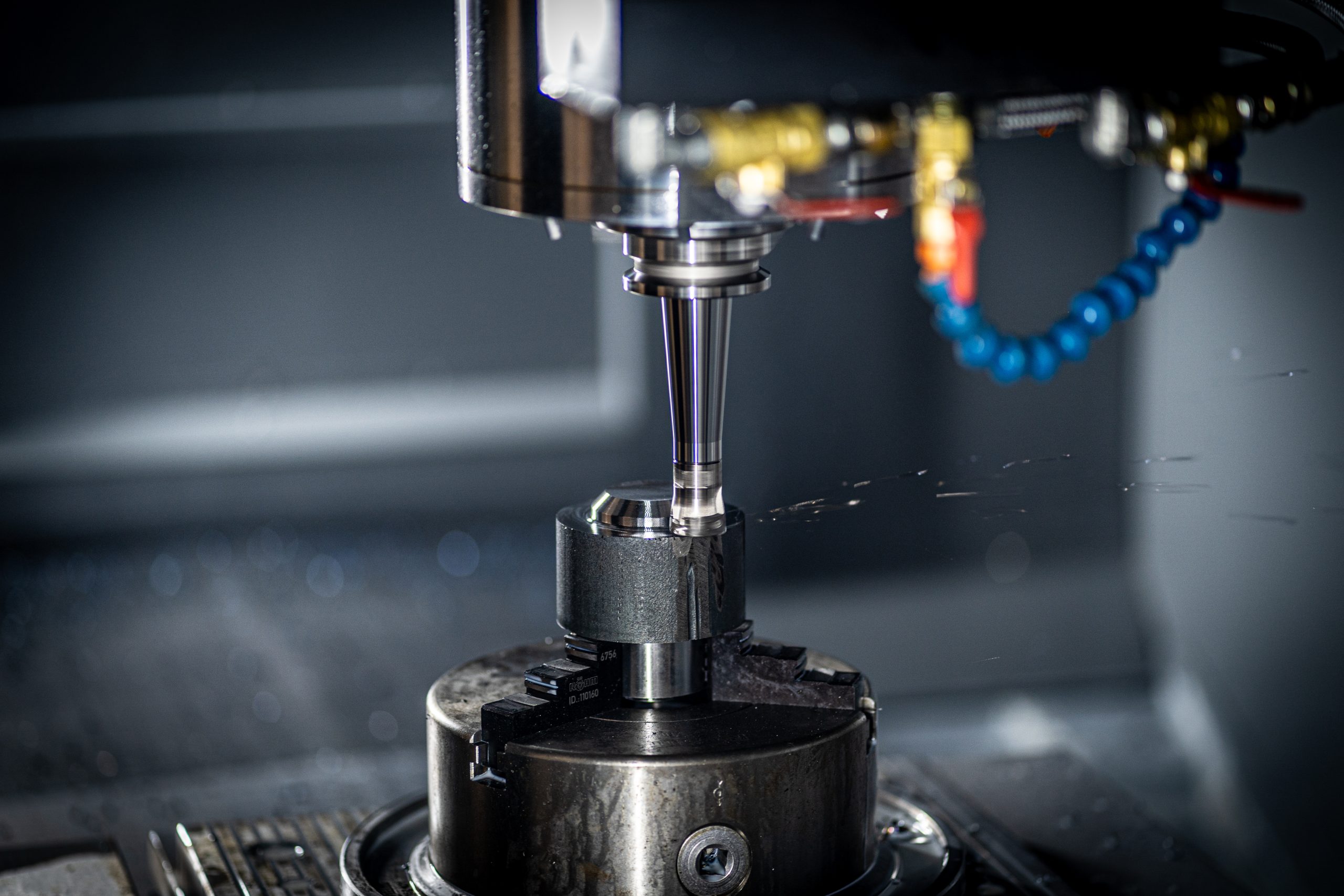

Thermal Expansion and Contraction
To ensure the desired accuracy, manufacturers must meticulously consider the thermal properties of the materials in use. By accounting for the expected thermal expansion and contraction, appropriate compensations can be applied during the machining process. This may entail preheating or cooling the material, employing specialized tooling, or incorporating compensation algorithms in the CNC program. By addressing thermal expansion and contraction, dimensional variations can be minimized, and parts that meet the required specifications can be delivered.

2. Deflection

Deflection refers to the bending or deformation of a material under load. When machining parts, the cutting forces exerted by the tools can induce deflection in the workpiece or the machine itself. This deflection can lead to inaccuracies in machined dimensions and compromise the overall part quality.

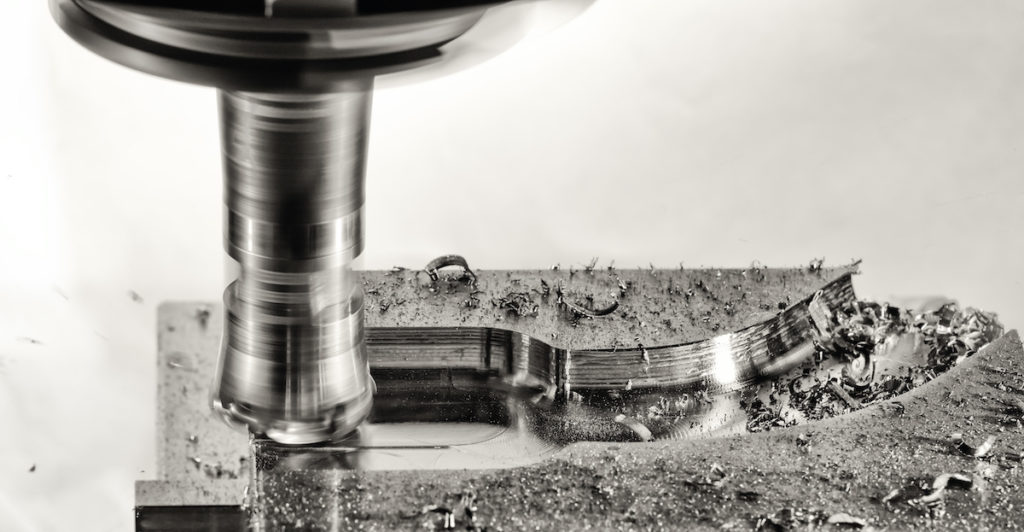

Deflection in CNC
To mitigate deflection, manufacturers must judiciously select appropriate cutting parameters, such as feed rates and depths of cut. By optimizing these parameters, cutting forces can be minimized, thereby reducing deflection and ensuring accuracy in machined parts. Additionally, the utilization of rigid tooling and work-holding techniques can help minimize deflection and maintain dimensional stability throughout the machining process.

3. Chatter

Chatter refers to self-excited vibration that occurs during machining, resulting in suboptimal surface finish, dimensional inaccuracies, and reduced tool life. Various factors can cause chatter, including improper tool selection, inadequate machine rigidity, and incorrect cutting parameters.

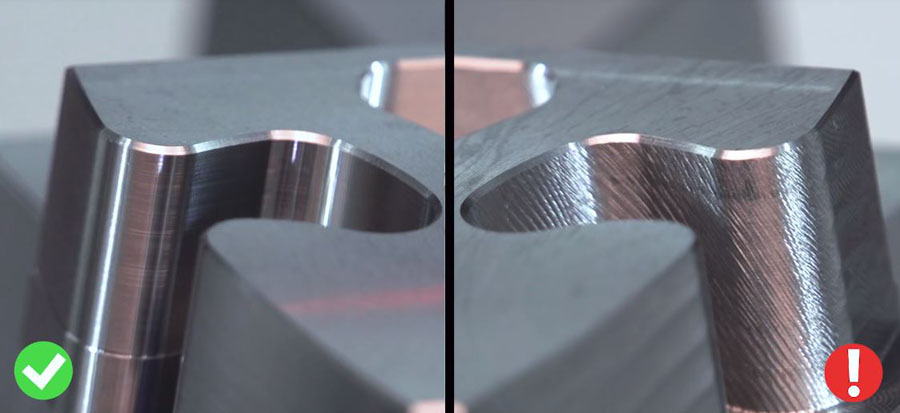

chatter
Addressing chatter requires a meticulous analysis of the machining process to identify the root causes. This may involve selecting appropriate cutting tools with the right geometry and coatings, ensuring the machine’s structural rigidity, and optimizing cutting parameters to avoid resonance frequencies. By minimizing chatter, CNC machining service providers can achieve superior surface finishes, precise dimensions, and extended tool life, resulting in high-quality machined parts.

4. Tolerances

Considering the impact of thermal expansion, deflection, and chatter on machined parts, it becomes evident that setting appropriate tolerances is crucial. Tolerances define the allowable variations in dimensions, ensuring that the final parts meet the required specifications. By establishing precise tolerances, manufacturers can account for potential variations caused by these factors and deliver parts that meet the customers’ exact expectations.
Dsc 0208 11 1 1

Conclusion

In the aerospace, medical, and defense industries, where precision and consistency are paramount, comprehending the effects of thermal expansion, deflection, and chatter on machined parts is indispensable. By effectively addressing these factors and implementing appropriate tolerances, CNC machining service providers can ensure the accuracy and consistency of the final products. When partnering with a knowledgeable and experienced CNC machining service provider, such as Ethereal Machines, customers can have confidence in receiving high-quality machined parts that meet their stringent requirements.
