Importance of 5-axis CNC Machining in Automobile Industries

29019 scaled

5-axis CNC Machining - A New Future in the Automotive Industry

Automotive is a fast-growing industry, and according to some experts, the growth is exponential compared to five decades ago. A large part of this growth can be attributed to automation, with electric mobility, driverless cars, and ride-sharing reshaping the industry model as we know it. These new modalities have increased the demand and use of automation and robotics in the production and design of automobiles. CNC machining is one such automation technology that is being touted as the future of the automotive industry.

CNC or Computer Numerical Control machining allows for higher efficiency and lower costs than traditional manufacturing processes in high demand. Read on as we discuss the application of 5-axis CNC machining in the automobile industry in greater detail.

Facts About 5-Axis Machining Centers and High-Performance Machining Centers

Before we get into the application and importance of 5-axis CNC machining to the automobile industry, let us first understand some facts related to 5-axis machining centers –

  1. A 5-axis CNC Machine (also known as 5-axis Machining Center) is a CNC machine tool that uses five different axes to remove or cut material. Compared to a 1-axis machine which only provides two motions up and down, a 5 axis machine has two extra axes, which provide endless possibilities for machining. These additional axes allow a part to be cut from all directions and further allow undercutting without any need for re-positioning. With re-positioning being eliminated, a 5-axis machine reduces errors and wastage of time.
  2. A 5-axis CNC machine improves accuracy compared to traditional machining. For example, suppose a 6-sided part needs to be machined using a conventional machine. In that case, it will require multiple fixtures and extra operations, which will affect the accuracy of the result.
  3. There is no substitute for a 5-axis machine. It comes with control options such as tool center point control (TCPC), auto-tuning, and many other features that make setup quicker. So if you are looking to substitute a 5-axis machine with a trunnion-equipped 3-axis VMC, think again.
  4. High-performance machining provides similar results as 5-axis but requires engineering and machining understanding to get full proof results. High-performance machining is an umbrella term covering high-speed machining, high feed milling, chip thinning, etc. The best part- you do not require extra tools to implement high-performance machining. You can get high-quality results like reducing cutting forces and tool deflection by upgrading your CAM system and using high feed milling. High-performance machining, however, requires specific cutting tools to be effective.
  5. All 5-axis machining centers are different. There are machines with tilt rotary tables attached to a 3-axis machining center and machines with integrated tilt rotary. Before choosing the 5-axis machine to buy, it is important to look into the accuracy you desire, machine cost, and even the size of the workpiece.
  6. Using 5-axis machining with various work holding options, you can machine multiple parts per cycle.
  7. The biggest advantage of the 5-axis machine tool is the flexibility and reduction in lead time. A 5-axis machine reduces works in progress and makes for better workforce utilization.

CNC Machining for the Automotive Industry

CNC machining has been a gamechanger for the automotive industry in speeding up manufacturing and improving the precision of produced parts. Products produced using 5-axis machining have better consistency and require high automation and low labour intensity. This has made cars using parts produced by CNC machining more reliable. Some additional benefits of using CNC machining in the automobile industry are enumerated below:

  • CNC helps with building engines that have higher tolerances and efficiency. The technology allows for complex geometries to be introduced inside a car engine.
  • CNC has improved the reliability of car engines and helped amp up production to meet the high demand for cars. Manufacturers can produce cars faster by using CNC technology.

The automotive industry increasingly demands precise and sophisticated parts, making 5-axis machining a must. 5-axis machining does away with the need for multiple machine setups and results in shorter production times and high precision cuts. Another big pro of 5-axis machining for car manufacturing is the repetition factor.

CNC machining allows the same car to be replicated multiple times with ease. From gearboxes produced using milling, turning, and grinding, high precision drive axle produced to complex headlight and backlight designs produced, CNC has many applications in the industry.

CNC Automotive Technology: A New Future in the Automotive Industry

CNC machining is undoubtedly the future of the automotive industry. The process helps with faster and precise prototyping by using computer control and automation. Using digital files in a computer sequence transmitted to physical tools leads to higher precision in CNC machining than other technology. CNC operations can be carried out using both 3 and 5-axis machining and live tool turning, making CNC an incredibly versatile process. CNC operations work on materials in various ways, leading to more complex parts.

This also gives it a broad range of applications when producing auto parts. For example, the use of CNC machining to produce cylinder heads. Cylinder heads are auto parts that come with complex curves, involving a dual movement of the workpiece that can only be accomplished using a 5-axis machine. Also important to note is the sustainability aspect of CNC machining, a conversation that has gathered momentum in the automobile industry in recent years. CNC machining processes reduce waste by providing high precision and accuracy in the parts produced. In addition, CNC machining involves using a single piece of equipment that does all the jobs. Different machines would carry out different jobs in other machining types.

Conclusion

With CNC machining, manufacturers can save the space required to house additional machines while saving energy and reducing carbon footprint. As climate change concerns rise, automotive industries can make their operations more eco-friendly using CNC machining. New technologies like driverless cars also get a solid boost from the application of CNC machining.

CNC machining that uses AI can produce precise and high accuracy parts required for self-driving cars that need quality results. CNCs can manufacture electrical and mechanical components of such cars and other operations like mold making, laser machining, mechanical components like brake shoes, ruled-based programmed engine parts, heat sinks, front panels, etc.

As the parts of driverless cars need to be identical, using AI-assisted CNC will help improve surface quality and accuracy. Electrical components of autonomous vehicles, including radar sensors, optical instruments, membrane switches, adapters, connectors, sockets, etc., can be produced using CNC machining. It is undebatable that as CNC machining becomes more accessible, its role in the future of the automotive industry will also assume more significance.

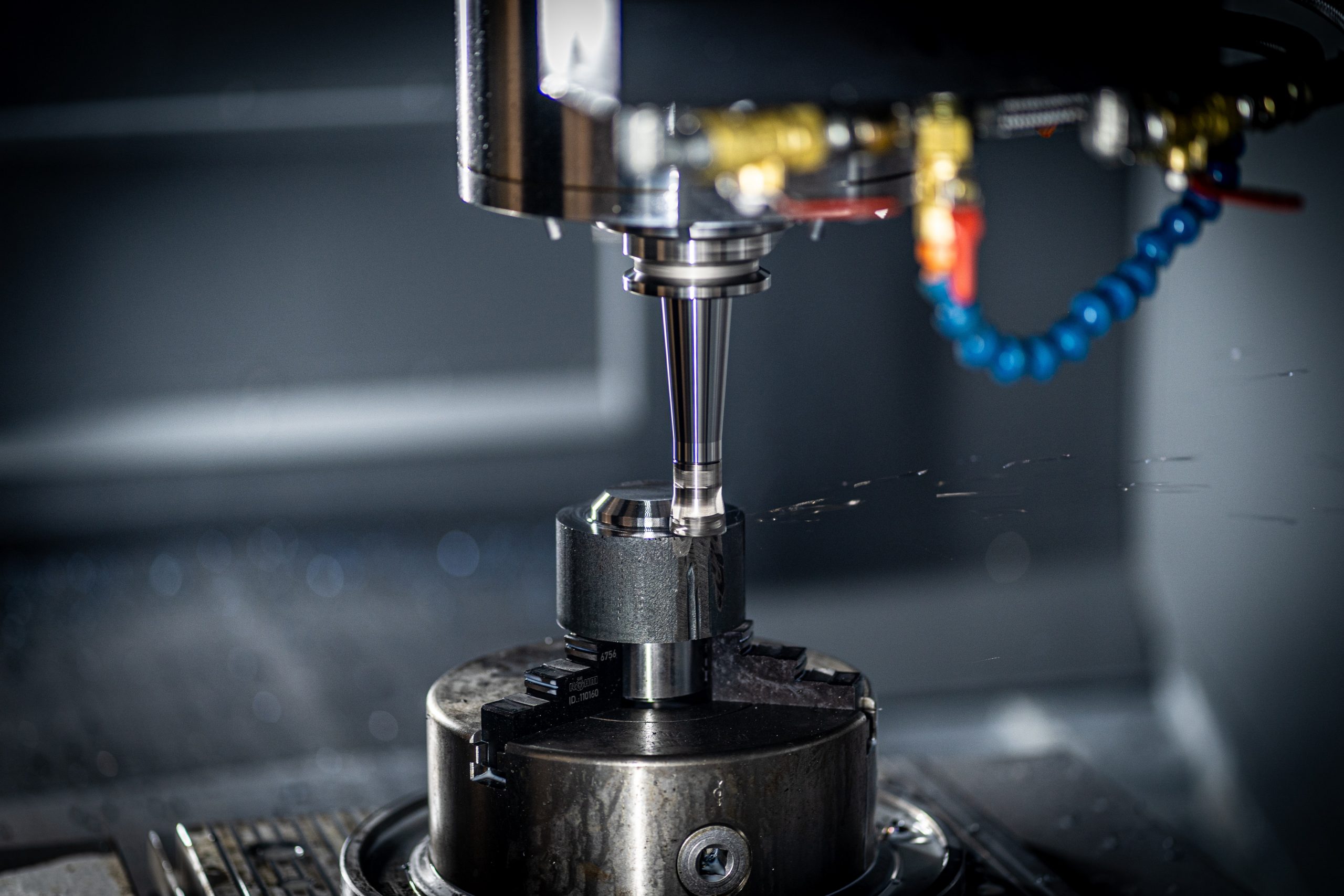

5-Axis CNC for Precision Machining

daniel smyth L4tmJYy7IXQ unsplash 1 scaled

What is CNC Machining?

Computer Numeric Control (CNC) machining is when materials are removed using high-speed precision machinery with a wide range of cutting tools. These cutting tools work on 5 axes in a single setup to deliver a final product. CNC machining implements subtractive machining technology.

A 5-axis refers to the ability of the machine to move a tool or part in five different axes at the same time. While basic machines operate on X, Y, and Z axes, 5-axis machining has two additional axes, A and B axes. This enables the machine a multidirectional approach. The machining can access five sides of the tool or part as the CNC controllers move all five axes simultaneously. Since the machine uses advanced 5-axis CNC controllers, it can manufacture complex tools. It offers high accuracy, efficiency, repeatability, and precision under very little time and minimal setup.

CNC machining uses Computer-Aided Design (CAD) to design a product and Computer-Aided Manufacturing (CAM) to program the manufacturing processes. This programming is fed into CNC machines, and the entire process is carried out through automation. This means there is a minimal manual process. Utilizing CAD/CAM mitigates human error, reduces time in designing, manufacturing and helps speed up processes. This ensures large-scale flawless production with high precision.

Strategies to get the most from 5 - Axis Machining

Collecting Information and Communication

The simplest and most efficient strategy that can be used is to gather all the information available before commencing the machining process. Speak to the customers to get accurate and complete information regarding the quality and specifications.​

Full Simulation Softwares

After a program is received from the CAD system, full simulation software can help verify the process before it is fed into machines. This will help rectify errors and accommodate rectifications in the design. It is better to verify ahead rather than fix models after making them.

Innovative Work-holding

Identify peculiar options for work holding that can access all sides of tools. Rethinking the designs can help in changing work holding. This eliminates complex setting up processes and reduces manual handling.

Tooling for 5-axis CNC

Specific tools are designed for high-speed 5-axis machining. Choosing different quality tools can help achieve specifications to customer satisfaction. Automatic tool changers with multiple stations will help in easily locating and loading tools to have them available for any application.

Choice of Machines

Make sure to equip the machining to match the job at hand. A solid base is necessary for handling high speeds. The controls need to be fast and powerful. Spindles should be enabled to move up to 40,000 to 50,000 RPM. All the axes have to move simultaneously to ensure accuracy and surface finishing. Choosing the machine with the right options will enhance productivity and reduce errors.

Run Kinematics

Make sure to equip the machining to match the job at hand. A solid base is necessary for handling high speeds. The controls need to be fast and powerful. Spindles should be enabled to move up to 40,000 to 50,000 RPM. All the axes have to move simultaneously to ensure accuracy and surface finishing. Choosing the machine with the right options will enhance productivity and reduce errors.

Ultrasophisticated Machining Capability Provides Time and Money Savings

The additional axes and mobility of the workpieces in 5-axis platforms help cut parts geometrically. With this, complex shapes can be achieved quickly and easily. The 5-axis CNC combines different standalone operations reduces part handling and multiple clamping phases during the process, thus increasing the final product’s accuracy. Shorter cutting tools with less vibration and deflection, higher cutting speeds, tighter tool movements, and improved finishing are achieved as the spindle head operates closer to the workpiece.

The 5-axis CNC is very cost-effective. Production output increases while cycle time, costly work fixtures, and wastage are reduced due to the consolidation of axes into a single setup. CNC machining is an efficient and economical choice. It also offers a faster lead time, and the quality of production turnaround is better than machines with fewer axes. These features and advantages of CNC machining help precisely manufacture higher quantities of final products at an appreciably very low time, and all chances of errors are removed.

Is 5-Axis Good for Your Business?

Simple Setup

The 5-axes rotations remove the necessity of taking breaks to set up the machining process. Expect the bottom and clamping area, and all surfaces can be worked on. Even complex products can be completed with a single setup

Suitable for Complex Shapes

The 5-Axis CNC machining does not require multiple setups or additional features. It gives quick access to different machining arcs and angles. With up to 8 degrees of freedom, complex shapes can be generated with precision, large quantities, and low error rates.

Better Tool Cycle and Lifespan

The collision between the cutting tool and tool holder is minimal in 5-axis CNC machining, thanks to more degrees of freedom. This means that the tool’s lifetime and the cycle are improved.

Accuracy of Parts

Various industries require precision in the machinery used in different processes. Removing workpieces to change setups leads to loss of alignment and precision. The quick and fast movements in all desired directions in 5-axis CNC machining eliminates the need to move the workpiece to different workstations. Thus, the precision of complex parts and surface finishing can be maintained and delivered with 5-axis machines.

Fast Material Removal

The cutting tool in 5-axis CNC machining is placed tangential to the workpiece. This ensures faster removal of material, and time spent on tools is saved.

Benefits of 5-Axis Machining in Precision Milling

The presence of five axes in CNC machining gives it an operational edge over other machines. The benefits of 5-axis machining in precision milling are:

1. The ability to machine complex shapes and parts due to 8 degrees of freedom.

2. Lack of need for multiple setups or special fixtures.

3. Increased feature and part accuracy due to a greater number of axes.

4. Better surface finishing because of increased tool precision.

5. Reduced Part Hand Setups, and usage of Fewer Machines.

6. On-demand production of parts because of increased efficiency and faster manufacturing speeds.

7. Reducing costly workpiece fixtures and redundancy in tooling.

8. Increase production rate and decreased chance of errors because of faster operation and shorter setup to set-up.

Conclusion

Different industries such as aerospace, automotive, consumer electronics, defense, healthcare, oil, and gas require precision machinery. With 5-Axis CNC machining, complex and intricately designed parts can be manufactured with high levels of precision in less time.

CNC machining ensures repeatability and consistency. 5-Axis machining ensures meeting cost and time efficiencies and also longevity of tools produced. With the advancements in technology, it is sure that 5-axis CNC machining is the best choice for manufacturing machinery that requires high precision and zero errors.
